VCHRGD TwentyTwo Dual Sockets 22kW Type 2 EV Charger

Discover the VCHRGD TwentyTwo Dual 22kW Commercial EV Charger. Ultra-compact dual Type 2 wallbox featuring MID metering, 4G/Wi-Fi/Ethernet, OCPP 1.6, and PEN protection.

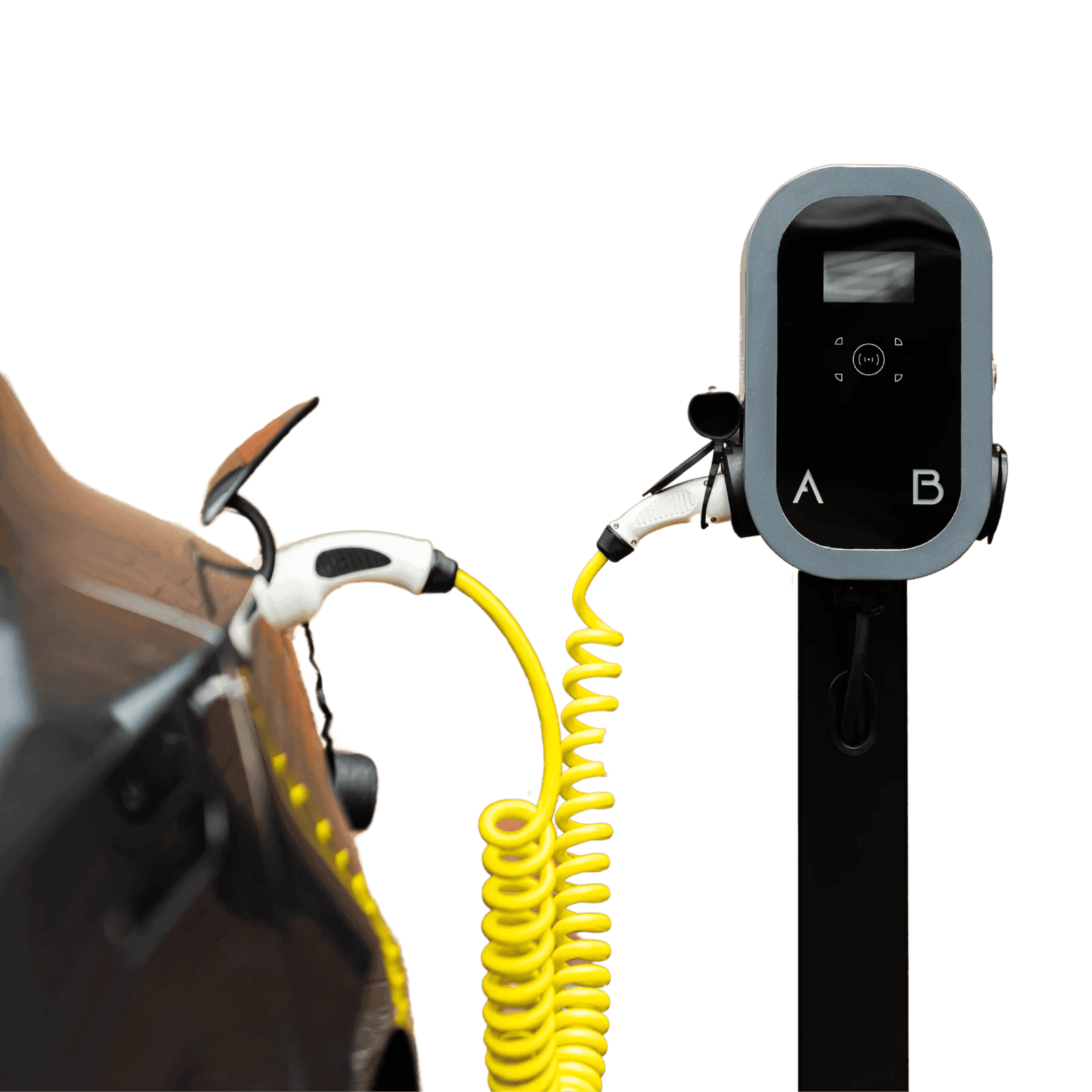

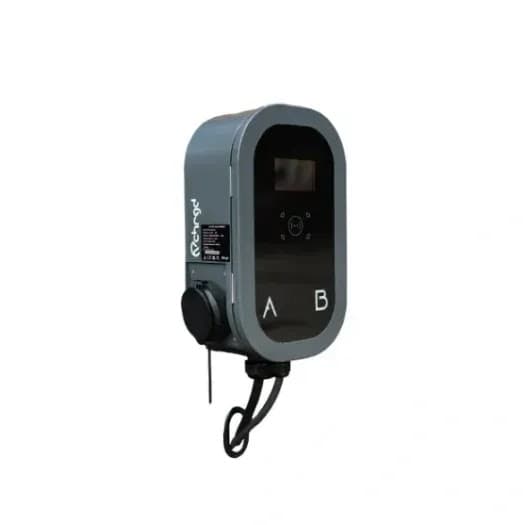

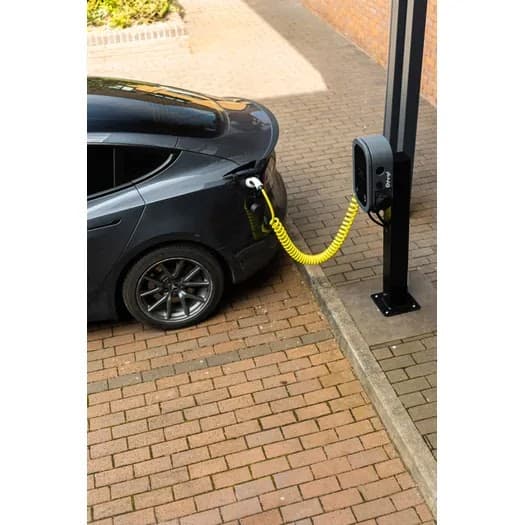

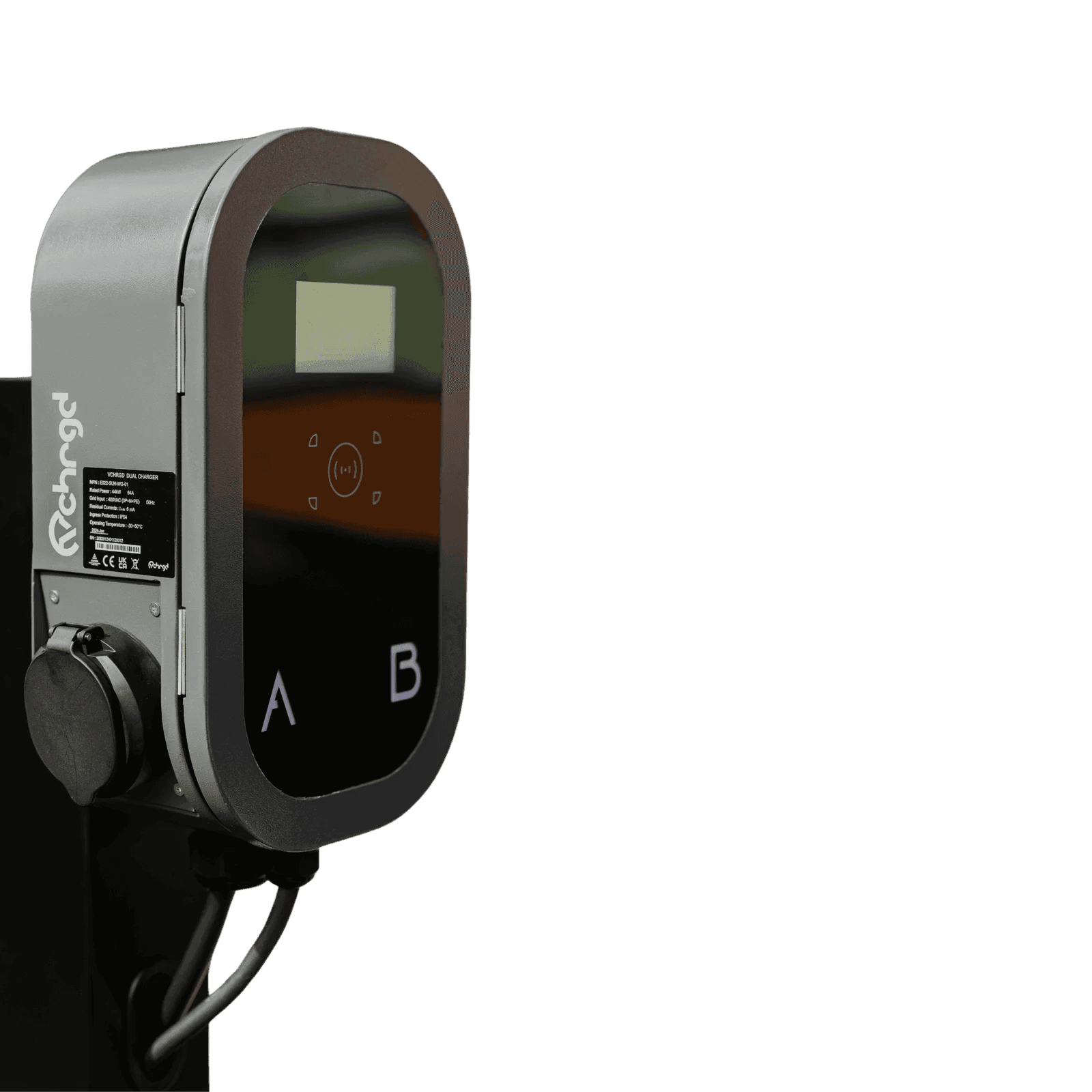

The VCHRGD TwentyTwo Dual 22kW EV Charger is a high-speed, versatile, and reliable dual-port charging solution engineered for commercial hubs, fleets, and high-traffic residential complexes. Featuring dual universal Type 2 sockets with debris guards, this unit delivers up to 2x22kW charging (configurable to 2x11kW on 3-phase or a 7.4kW split on 1-phase) to power two vehicles simultaneously at top speeds. Housed in a sleek, corrosion-resistant aluminum casing measuring just 465 x 254 x 135mm, it delivers maximum durability and space-saving efficiency in a compact footprint.

Designed for smart energy management, the TwentyTwo Dual includes hardwired dynamic load balancing with included CT clamps to distribute power intelligently across both ports and prevent electrical overloads. Installation is streamlined and cost-effective thanks to integrated PEN fault protection, which eliminates the need for earth rods while ensuring full compliance with UK safety and smart charging regulations. Dual MID-certified metering channels guarantee billing accuracy, while built-in security features—including magnetic anti-tamper case-open detection, an emergency cut-off, and encrypted communications—safeguard the unit against unauthorized access.

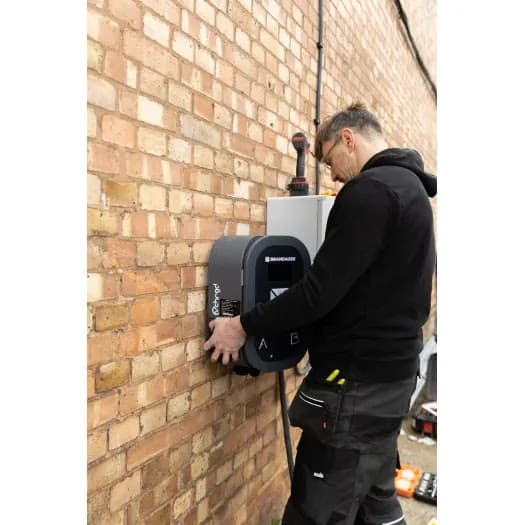

Managing and operating the charger is seamless via a clear 4.3-inch TFT touchscreen display for real-time data, on-site customization, and RFID card registration. Full OCPP 1.6 compliance enables effortless integration with leading charge point management and payment platforms for automated monitoring and billing. Connected reliably through built-in Wi-Fi, 4G, or Ethernet, the charger offers plug-and-play installation with a hinged front door and pre-labelled terminals for fast, simple commissioning.
